CBB21 金属化聚丙烯膜电容器
金属化聚丙烯薄膜无感式卷绕，镀锡铜包铜线引出，环氧树脂包封。
| 技术参数 |
| 引用标准 | IEC 384-16 |
| 气候类别 | -40°C~+85°C |
| 额定电压 | 160VDC/250VDC/400VDC/630VDC |
| 电容量范围 | 0.0047μF~10μF |
| 电容量偏差 | ±5%（J）、±10%（K） |
| 耐电压 | 1.75Un 5s |
| 损耗角正切 | ≤0.1% （23°C 1kHz） |
| 绝缘电阻 | ≥3000mΩ.μF（23°C 1min） |

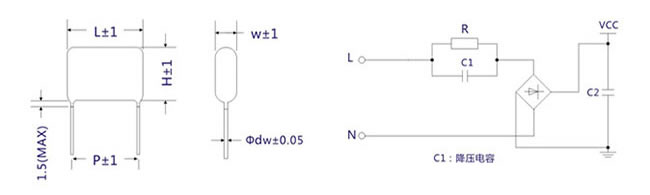

| 常用尺寸 | 单位：mm |
| 容量 (μF) |
250VDC | 400VDC | 630VDC | ||||||||||||
| L | W | H | P | d | L | W | H | P | d | L | W | H | P | d | |
| 0.01 | - | - | - | - | - | 12 | 4.3 | 9.5 | 10 | 0.6 | 12 | 4.3 | 9.5 | 10 | 0.6 |
| 0.022 | - | - | - | - | - | 12 | 4.5 | 8.9 | 10 | 0.6 | 12 | 6.1 | 11.3 | 10 | 0.6 |
| 0.047 | - | - | - | - | - | 12 | 5.1 | 10.3 | 10 | 0.6 | 12 | 5.1 | 10.3 | 10 | 0.6 |
| 0.068 | - | - | - | - | - | 12 | 6 | 11.3 | 10 | 0.6 | 12 | 6 | 11.3 | 10 | 0.6 |
| 0.1 | 12 | 4.5 | 9.7 | 10 | 0.6 | 12 | 5.2 | 10.4 | 10 | 0.6 | 12 | 6.5 | 11.7 | 15 | 0.8 |
| 0.15 | 12 | 5.3 | 10.5 | 10 | 0.6 | 12 | 6.3 | 11.5 | 15 | 0.8 | 17 | 5.2 | 11.9 | 15 | 0.8 |
| 0.22 | 12 | 6.5 | 11.6 | 10 | 0.6 | 17 | 5 | 11.8 | 15 | 0.8 | 17 | 6.2 | 13 | 15 | 0.8 |
| 0.33 | 17 | 5.6 | 10.8 | 15 | 0.8 | 17 | 6.1 | 12.9 | 15 | 0.8 | 17 | 7.7 | 14.5 | 15 | 0.8 |
| 0.39 | 17 | 5.5 | 12.3 | 15 | 0.8 | 22.5 | 5.5 | 12.2 | 20 | 0.8 | 22.5 | 6.8 | 13.6 | 20 | 0.8 |
| 0.56 | 17 | 6.6 | 13.4 | 15 | 0.8 | 22.5 | 6.5 | 13.3 | 20 | 0.8 | 22.5 | 8.2 | 15 | 20 | 0.8 |
| 0.68 | 17 | 7.3 | 14.1 | 20 | 0.8 | 22.5 | 7.8 | 13 | 20 | 0.8 | 22.5 | 9.1 | 15.9 | 20 | 0.8 |
| 0.82 | 17 | 8.1 | 14.9 | 20 | 0.8 | 22.5 | 8 | 14.7 | 20 | 0.8 | 22.5 | 10 | 16.8 | 20 | 0.8 |
| 1 | 22.5 | 7.3 | 14 | 20 | 0.8 | 22.5 | 8 | 15.6 | 20 | 0.8 | 22.5 | 10.5 | 18.8 | 26 | 0.8 |
| 1.2 | 22.5 | 7.4 | 15.8 | 20 | 0.8 | 22.5 | 9.1 | 17.4 | 20 | 0.8 | 22.5 | 11.6 | 20 | 26 | 0.8 |
| 1.3 | 22.5 | 7.8 | 16.1 | 20 | 0.8 | 22.5 | 9.5 | 17.8 | 20 | 0.8 | 22.5 | 12.1 | 20.5 | 20 | 0.8 |
| 1.5 | 22.5 | 8.5 | 16.7 | 20 | 0.8 | 23 | 10.5 | 17.3 | 21 | 0.8 | 22.5 | 13.1 | 21.5 | 26 | 0.8 |
| 1.7 | 22.5 | 9 | 17.3 | 20 | 0.8 | 22.5 | 11 | 19.3 | 26 | 0.8 | 28 | 12 | 20.4 | 26 | 0.8 |
| 2.2 | 22.5 | 10.4 | 18.7 | 26 | 0.8 | 28 | 10.5 | 18.9 | 31 | 0.8 | 28 | 10.5 | 18.9 | 31 | 0.8 |
| 3.3 | 28 | 10.8 | 19.1 | 26 | 0.8 | 28 | 13.2 | 21.6 | 31 | 0.8 | 28 | 13.2 | 21.6 | 26 | 0.8 |
| 4.7 | 28 | 13.1 | 21.5 | 26 | 0.8 | 28 | 16.1 | 24.4 | 31 | 0.8 | 33 | 18.7 | 27 | 31 | 0.8 |
| 6.8 | 28 | 16.1 | 24.4 | 26 | 0.8 | 28 | 19.7 | 28 | 31 | 0.8 | 33 | 22.8 | 31.2 | 31 | 0.8 |
备注：如果以上常规参数没有的可以根据特殊要求进行定制。
