SCF IGBT吸收电容器_电容展示

引用标准	IEC61071
使用温度范围	-40°C~+85°C
存储温度范围	-40°C~+85°C
容量范围	0.0068μF~8.5μF
容量偏差	±5%，±10%
电压范围	700VDC~3000VDC
极间耐压	1.75Un 10s
损耗角正切	≤1μF：0.0004 ＞1μF：0.0006 10kHz 25°C
预期寿命	100000 小时
绝缘电阻	≤0.33μF：≥100000M ＞0.33μF：≥30000s 100VDC 25°C

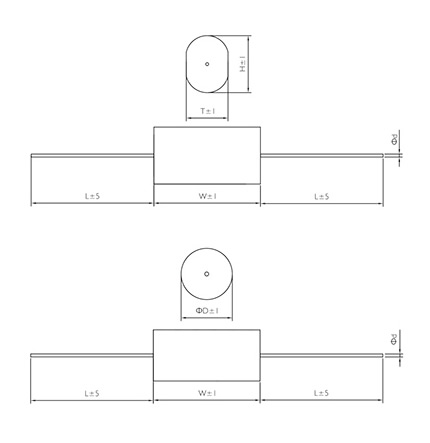

常用尺寸

单位：mm

容量 (μF)	W	D	T	H	d	Ipeak (A)	Irms 25°C 10kHz (A)	dv/dt (v/μs)	ESR (mΩ)
700VDC
0.22	32	-	7.9	14.3	0.8	106	5.5	480	9.8
0.33	32	14.2	9.5	17.5	0.8	158	6	480	6.8
0.47	32	16.6	11.9	19.9	0.8	226	8	480	4.7
0.68	32	19.7	14.9	22.9	1	326	9	480	3.9
0.68	45	15.6	10.9	18.9	1	238	9	350	4.4
1	45	18.7	13.9	21.9	1.2	350	9	350	3.9
1.5	45	22.6	16.3	27.5	1.2	525	12	350	3.3
2	45	25.9	19.5	30.7	1.2	700	12	350	3
2.2	45	27.1	20.7	31.9	1.2	770	12	350	2.9
2.2	57	22.6	16.3	27.5	1.2	572	12	260	3.8
2.5	45	28.8	22.4	33.6	1.2	875	12	350	3.5
2.5	57	24	17.7	28.9	1.2	650	12	260	3.8
3	45	31.4	25	36.2	1.2	1050	12	350	3.1
3	57	26.2	19.8	31	1.2	780	12	260	3.3
3.3	45	32.9	26.4	37.6	1.2	1155	12	350	2.9
3.5	57	28.2	21.8	33	1.2	910	12	260	2.7
4	57	30	23.6	34.8	1.2	1040	12	260	2.6
4.7	57	32.5	26	37.2	1.2	1222	12	260	2.5
5.6	57	35.4	28.8	40	1.2	1456	12	260	2.3
6.8	57	38.9	-	-	1.2	1768	12	260	2
8.5	57	43.3	-	-	1.2	2210	12	260	1.6
850VDC
0.1	32	-	5.9	12.3	0.8	72	4	720	11.5
0.15	32	-	7.6	14	0.8	108	5.5	720	8.6
0.22	32	13.7	9.1	17.1	0.8	158	6.5	720	6.5
0.22	45	11.1	7.1	13.5	0.8	92.4	6.5	420	7.9
0.33	32	16.4	11.7	19.7	1	238	8	720	4.8
0.33	45	13.2	8.5	16.5	1	139	7.5	420	6.1
0.47	32	19.3	14.6	22.6	1	338	9	720	4
0.47	45	15.4	10.7	18.7	1	197	9	420	5
0.68	45	18.2	13.5	21.5	1	286	9	420	3.2
1	45	21.8	15.6	26.8	1.2	420	12	420	3.3
1.5	45	26.4	20.1	31.3	1.2	630	12	420	2.8
2	45	30.4	23.9	35.1	1.2	840	12	420	3
2.2	45	31.8	25.3	36.5	1.2	924	12	420	2.3
2.2	57	26.5	20.1	31.3	1.2	660	12	300	2.8
2.5	45	33.8	27.3	38.5	1.2	1050	12	420	2.6
2.5	57	28.1	21.7	32.9	1.2	750	12	300	2.8
3	57	30.7	24.3	35.5	1.2	900	12	300	2.6
3.3	57	32.2	25.7	36.9	1.2	990	12	300	2.4
4	57	35.3	28.8	40	1.2	1200	12	300	2.3
4.7	57	38.2	-	-	1.2	1410	12	300	2
5.6	57	41.6	-	-	1.2	1680	12	300	1.7
1000VDC
0.1	32	-	7.7	12.5	0.8	86	5	860	11.8
0.15	32	-	9.1	15.5	0.8	129	6	860	8.2
0.22	32	15.6	10.9	18.9	1	189	7	860	7.8
0.33	32	18.7	14	22	1	284	9	860	4.5
0.33	45	14.9	10.2	18.2	1	191	9	580	5.8
0.47	32	22.1	15.9	27.1	1	404	9	860	3.8
0.47	45	17.5	12.8	20.8	1	273	9	580	4.7
0.68	45	20.8	14.6	25.8	1	394	9	580	4
1	45	25	18.6	29.8	1.2	580	12	580	3.2
1.5	45	30.3	23.9	35.1	1.2	870	12	580	3.6
1.5	57	25.2	18.9	30.1	1.2	525	12	350	3.9
2	57	29	22.6	33.8	1.2	700	12	350	3
2.2	57	30.3	23.9	35.1	1.2	770	12	350	2.7
3	57	35.3	28.7	39.9	1.2	1050	12	350	2.4
3.3	57	36.9	32.9	39.3	1.2	1155	12	350	2.1
4	57	40.6	-	-	1.2	1400	12	350	1.8
4.7	57	43.9	-	-	1.2	1645	12	350	1.6
1200VDC
0.047	32	-	5.6	11.9	0.8	51.7	3	1100	19.4
0.068	32	-	7	13.3	0.8	74.8	3.5	1100	12
0.1	32	-	8.8	15	0.8	110	5	1100	10.7
0.1	37	11.7	7.2	14.5	0.8	85	5	850	11.8
0.1	45	10.7	6.7	13	0.8	65	5	650	13.1
0.15	32	15.2	10.5	18.3	1	165	6	1100	7.7
0.15	37	13.9	9.2	17.1	1	128	6	850	8.7
0.15	45	12.5	8.5	14.8	1	97.5	6	650	10
0.22	32	17.9	13.2	21.1	1	242	9	1100	5.4
0.22	37	16.3	11.6	19.4	1	187	9	850	6
0.22	45	14.6	10	17.9	1	143	9	650	7.6
0.33	32	21.5	16.7	24.5	1	363	9	1100	4.5
0.33	37	19.6	14.8	22.6	1	281	9	850	4.8
0.33	45	17.5	12.7	20.5	1	215	9	650	5.4
0.47	37	23	17.4	26.8	1.2	400	12	850	4
0.47	45	20.5	15.7	23.5	1.2	306	12	650	4.8
0.68	37	27.3	21.7	31.1	1.2	578	12	850	2.9
0.68	45	24.3	17.7	28.1	1.2	442	12	650	3.9
1	45	29.1	22.7	33.7	1.2	650	12	650	3.4
1	57	23.9	17.6	28.6	1.2	390	12	390	3.8
1.2	45	31.7	25.3	36.3	1.2	780	12	650	3
1.2	57	26	19.7	30.7	1.2	468	12	390	3.4
1.5	45	35.3	28.8	39.8	1.2	975	12	650	2.7
1.5	57	28.9	22.5	33.5	1.2	585	12	390	3
2	57	33.2	26.7	37.7	1.2	780	12	390	2.6
2.2	57	34.7	28.2	39.2	1.2	858	12	390	2.5
2.5	57	36.9	30.4	41.4	1.2	975	12	390	2.3
3	57	40.3	33.7	44.7	1.2	1170	12	390	2
3.3	57	42.2	-	-	1.2	1287	12	390	1.7
4	57	46.3	-	-	1.2	1560	12	390	1.5
1500VDC
0.068	32	-	8.5	14.9	0.8	85	4	1250	13.8
0.1	32	14.7	10	18	0.8	125	5.5	1250	9.6
0.15	32	17.7	13	21	1	188	7	1250	7.2
0.22	32	21.1	14.9	26.1	1	275	9	1250	5.3
0.22	45	16.8	12.1	20.1	1	180	9	820	7
0.33	45	20.2	15.5	23.5	1	271	9	820	5.3
0.47	45	24.6	16.1	25.5	1.2	353	11	750	4.5
0.47	45	23.9	17.6	28.8	1.2	385	12	820	4.3
0.68	45	25.6	20	29.4	1.2	510	12	750	3.9
0.68	45	28.5	22.1	33.3	1.2	558	12	820	3.7
1	45	30.8	24.3	35.3	1.2	750	12	750	3.4
1	45	34.4	27.9	39.1	1.2	820	12	520	3.2
1	57	25.3	19.7	29.1	1.2	450	12	450	3.9
1	57	27.7	22.2	33.4	1.2	580	12	580	3.7
1.2	45	33.6	27.1	38.1	1.2	900	12	750	3
1.2	57	27.5	21.9	31.3	1.2	540	12	450	3.6
1.2	57	30.2	23.7	34.7	1.2	696	12	580	3.4
1.5	45	37.3	30.8	41.8	1.2	1125	12	750	2.8
1.5	57	30.6	24.1	34.1	1.2	675	12	450	3.1
1.5	57	33.6	27.1	38.1	1.2	870	12	580	2.9
2	57	35.1	28.6	39.6	1.2	900	12	450	2.7
2	57	38.5	-	-	1.2	1160	12	580	2.5
2.2	57	41.9	-	-	1.2	1276	12	580	2.3
2.5	57	44.6	-	-	1.2	1450	12	580	2.1
1700VDC
0.033	32	-	5.9	12.3	0.8	44.9	3.9	1360	24.6
0.047	32	-	7.4	13.8	0.8	63.9	4	1360	18.2
0.068	32	13.3	8.7	16.7	0.8	92.5	4.1	1360	13.7
0.1	32	15.8	11.1	19.1	0.8	136	5.7	1360	9.3
0.15	32	19.1	14.3	22.3	1	204	8.9	1360	7
0.22	32	22.8	16.5	27.7	1	299	9	1360	5.2
0.22	45	18.1	13.3	21.3	1	194	9	880	6.8
0.33	45	21.8	15.6	26.8	1	290	9	880	4.9
0.47	45	25.8	19.5	32.4	1.2	414	12	880	4
0.68	45	30.8	24.4	35.6	1.2	598	12	880	3.5
1	45	37.2	30.6	41.8	1.2	880	12	880	3
1	57	30.9	24.4	35.6	1.2	620	12	620	3.4
1.2	57	33.8	27.2	38.4	1.2	744	12	620	3.1
1.5	57	37.6	-	-	1.2	930	12	620	2.6
2	57	43.3	-	-	1.2	1240	12	620	2.4
2000VDC
0.022	32	-	5.4	11.8	0.8	38.5	2.5	1750	34.5
0.033	32	-	7	13.4	0.8	57.8	3.5	1750	23.7
0.047	32	-	8.1	16.1	0.8	82.3	4.5	1750	16.8
0.047	45	10.4	6.4	12.8	0.8	47	4	1000	21
0.068	32	15	10.3	18.3	1	119	5.5	1750	11.8
0.068	45	12.1	8.1	14.5	0.8	68	5.5	1000	16.3
0.1	32	17.8	13.1	21.1	1	175	7.5	1750	8.4
0.1	45	14.2	9.6	17.6	1	100	7	1000	12.4
0.15	45	17.1	12.4	20.4	1	150	9	1000	6.6
0.22	45	20.4	15.6	23.6	1	220	9	1000	6
0.33	45	24.7	18.4	29.6	1.2	330	12	1000	4.7
0.47	45	29.9	23.4	34.6	1.2	470	12	1000	3.9
0.56	45	32.4	25.9	37.1	1.2	560	12	1000	3.6
0.56	57	26.5	20.1	31.3	1.2	364	12	650	4.5
0.68	57	29.1	22.7	33.9	1.2	442	12	650	4
1	57	35.1	28.6	39.8	1.2	650	12	650	3.3
1.2	57	38.3	-	-	1.2	780	12	650	3
1.5	57	42.8	-	-	1.2	975	12	650	2.2
2500VDC
0.022	32	-	6.9	13.3	0.8	47.3	3.5	2150	24
0.033	32	-	8.2	16.2	0.8	71	4	2150	22.7
0.047	32	15	10.3	18.3	0.8	101	5	2150	15.5
0.068	32	17.3	13	21	1	146	6.5	2150	11.1
0.1	32	21.3	15	26.2	1	215	8.5	2150	7.8
0.1	45	16.9	12.1	20.1	1	135	8.5	1350	12.2
0.15	45	20.4	15.6	23.6	1	203	9	1350	8.1
0.22	45	24.4	18.1	29.3	1.2	297	11	1350	5.9
0.33	45	29.6	23.2	34.4	1.2	446	12	1350	4.5
0.33	57	24.7	18.3	29.5	1.2	297	12	900	5.4
0.47	57	29.2	22.8	34	1.2	423	12	900	4.4
0.68	57	34.9	28.4	39.6	1.2	612	12	900	3.7
0.82	57	38.3	-	-	1.2	738	12	900	3.3
1	57	42.2	-	-	1.2	900	12	900	2.8
3000VDC
0.007	32	-	5.1	9.9	0.8	18.7	1.5	2750	89
0.01	32	-	5.9	12.3	0.8	27.5	2	2750	61
0.015	32	-	7.1	13.5	0.8	41.3	3	2750	42.5
0.022	32	13.1	8.4	14.6	0.8	60.5	4	2750	28.5
0.033	32	15.7	11	19	1	90.8	5	2750	19.7
0.047	32	18.4	13.7	21.7	1	129	6.5	2750	13.8
0.047	45	14.7	10	18	1	75.2	6	1600	17.8
0.068	45	19.3	12.6	20.6	1	109	8	1600	12.8
0.1	45	20.7	14.5	25.7	1.2	160	11	1600	9.4
0.15	45	25.1	18.8	30	1.2	240	12	1600	6.8
0.22	45	30.2	23.7	34.9	1.2	352	12	1600	5.2
0.22	57	25.1	18.8	30	1.2	220	12	1000	5.9
0.33	57	30.5	24.1	35.3	1.2	330	12	1000	4.9
0.39	57	33.1	26.6	37.8	1.2	390	12	1000	4.4
0.47	57	36.6	-	-	1.2	470	12	1000	4
0.68	57	43.4	-	-	1.2	680	12	1000	3.5
