IGBT吸收电容器 轴向
具有高纹波电流承受能力，体积小，温升低，寿命长等优点。广泛应用于UPS、逆变器、电焊机、电源、感应加热等设备的直流母线高频纹波吸收，能有效降低铝电解电容器、薄膜滤波电容器等的温升，大大延长其使用寿命。
| 技术参数 |
| 使用温度范围 | -40℃~+85℃/+105℃ |
| 容量范围 | 0.1uF~4.7uF |
| 额定电压 | 600VDC~3000VDC(50kHz) |
| 电容量偏差 | ±5%(J)、±10%(K) |
| 损耗角下正切 | tgδ≤0.0008(at 10kHz) |
| 耐电压 | 1.75Un(60S) |
| 绝缘电阻 | CxRs≥5000S(at20℃ 100V.DC 60S) |
| 耐电流冲击能力 | dv/dt>600v/us |
| 阻燃性 | UL94V-0 |
| 杂散电感 | ≤20nH |
| 有效电流 | 8A~20A |
| 引用标准 | IEC 61071、GB 17702.1 |

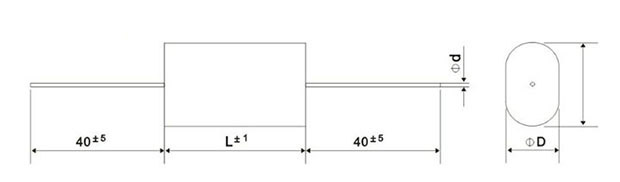

| 常用尺寸 | 单位：mm |
| 容量 (μF) |
L | T | H | d | ESR (mΩ) |
ESL (nH) |
dv/dt (V/μs) |
Ipk (A) |
Irms 70°C 100kHz (A) |
| Un=1000VDC | |||||||||
| 0.068 | 27 | 10 | 21 | 0.8 | 11 | 18 | 1100 | 74.8 | 3.8 |
| 0.1 | 32 | 8 | 15 | 0.8 | 10 | 20 | 1100 | 110 | 5.5 |
| 0.22 | 32 | 12 | 20 | 1.2 | 7 | 21 | 1000 | 220 | 7.3 |
| 0.33 | 32 | 15.5 | 26 | 1.2 | 6 | 21 | 1000 | 330 | 8.7 |
| 0.47 | 32 | 18 | 27.5 | 1 | 5 | 23 | 1000 | 470 | 10.5 |
| 0.68 | 32 | 23 | 32 | 1 | 5 | 25 | 900 | 612 | 11.7 |
| 1 | 44 | 22 | 33 | 1.2 | 4 | 27 | 900 | 900 | 12.4 |
| 1.5 | 44 | 27 | 37 | 1.2 | 4 | 29 | 900 | 1350 | 13.5 |
| 2.2 | 44 | 30 | 43 | 1.2 | 3 | 32 | 900 | 1980 | 14.5 |
| 3 | 57 | 29 | 40 | 1.2 | 3 | 34 | 800 | 2400 | 17.2 |
| 3.3 | 57 | 30 | 41 | 1.2 | 3 | 35 | 800 | 2640 | 17.8 |
| Un=1200VDC | |||||||||
| 0.068 | 27 | 9 | 18 | 0.8 | 11 | 18 | 1300 | 88.4 | 4 |
| 0.1 | 32 | 9 | 16 | 0.8 | 10 | 20 | 1300 | 130 | 6 |
| 0.22 | 32 | 14 | 22 | 1 | 7 | 22 | 1200 | 264 | 8.3 |
| 0.33 | 32 | 16 | 26 | 1 | 7 | 23 | 1200 | 396 | 9 |
| 0.47 | 32 | 21 | 31 | 1.2 | 7 | 23 | 1200 | 564 | 9.5 |
| 0.47 | 44 | 16 | 24 | 1.2 | 7 | 26 | 1200 | 564 | 9.8 |
| 0.68 | 44 | 19 | 30 | 1.2 | 6 | 27 | 1200 | 816 | 11.7 |
| 1 | 44 | 22 | 33 | 1.2 | 5 | 28 | 1100 | 1100 | 12.4 |
| 1.5 | 44 | 29 | 39 | 1.2 | 4 | 30 | 1100 | 1650 | 13.5 |
| 2.2 | 44 | 38 | 47.5 | 1.2 | 4 | 30 | 1100 | 2420 | 14.5 |
| 2.2 | 57 | 29 | 40 | 1.2 | 4 | 35 | 1000 | 2200 | 14.5 |
| 3 | 57 | 34 | 45 | 1.2 | 4 | 37 | 1000 | 3000 | 17.2 |
| 3.3 | 57 | 35 | 49 | 1.2 | 3 | 38 | 1000 | 3300 | 17.8 |
| Un=1600VDC | |||||||||
| 0.068 | 27 | 12 | 18.5 | 0.8 | 11 | 19 | 1300 | 88.4 | 6.1 |
| 0.1 | 32 | 10 | 17 | 0.8 | 10 | 21 | 1300 | 130 | 7.5 |
| 0.22 | 32 | 16 | 22.5 | 1.2 | 7 | 23 | 1200 | 264 | 9.3 |
| 0.33 | 32 | 18 | 27.5 | 1.2 | 6 | 24 | 1200 | 396 | 9.9 |
| 0.47 | 37 | 20 | 28 | 1.2 | 6 | 26 | 1200 | 564 | 11.2 |
| 0.68 | 44 | 20 | 31 | 1.2 | 5 | 27 | 1100 | 748 | 11.7 |
| 1 | 44 | 25 | 37 | 1.2 | 5 | 29 | 1100 | 1100 | 12.4 |
| 1.5 | 44 | 31 | 44 | 1.2 | 4 | 30 | 1100 | 1650 | 13.5 |
| 1.5 | 57 | 24 | 35 | 1.2 | 4 | 30 | 1000 | 1500 | 13.5 |
| 2.2 | 57 | 30 | 41 | 1.2 | 4 | 34 | 1000 | 2200 | 14.5 |
| 3 | 57 | 36 | 49 | 1.2 | 4 | 38 | 1000 | 3000 | 17.2 |
| Un=2000VDC | |||||||||
| 0.068 | 37 | 11 | 17.5 | 1 | 10 | 20 | 1600 | 108.8 | 6.9 |
| 0.1 | 37 | 12 | 18.5 | 1 | 9 | 22 | 1600 | 160 | 8.2 |
| 0.22 | 37 | 16.5 | 24.5 | 1.2 | 8 | 27 | 1500 | 330 | 9.1 |
| 0.33 | 37 | 20 | 29 | 1.2 | 8 | 28 | 1500 | 495 | 10.2 |
| 0.47 | 37 | 23 | 35 | 1.2 | 7 | 29 | 1500 | 705 | 12.4 |
| 0.68 | 44 | 25 | 37 | 1.2 | 6 | 32 | 1400 | 952 | 14.2 |
| 1 | 57 | 24 | 36 | 1.2 | 5 | 35 | 1400 | 1400 | 14.5 |
| 1.5 | 57 | 30 | 46 | 1.2 | 5 | 37 | 1300 | 1950 | 14.5 |
| 2.2 | 57 | 37 | 50 | 1.2 | 5 | 39 | 1300 | 2860 | 17.8 |
