MKP-C MKP-LS耦合隔直电容器
具有体积小，电流大。温升低，寿命长等优点，广泛应用于电源、逆变器，感应加热等设备，与功率输出变压器初级作串联连接，作耦合隔直的作用。
| 技术参数 |
| 使用温度范围 | -40℃~+85℃/+105℃ |
| 容量范围 | 5uF~100uF |
| 额定电压 | 400VDC~1500VDC(50kHz) |
| 电容量偏差 | ±5%(J)、±10%(K) |
| 损耗角下正切 | tgδ≤0.002(at 1kHz) |
| 耐电压 | 1.75Un(60S) |
| 绝缘电阻 | CxRs≥5000S(at20℃ 100V.DC 60S) |
| 耐电流冲击能力 | dv/dt>600v/us |
| 阻燃性 | UL94V-0 |
| 杂散电感 | ≤20nH |
| 有效电流 | 15A~80A |
| 引用标准 | IEC 61071、GB 17702.1 |

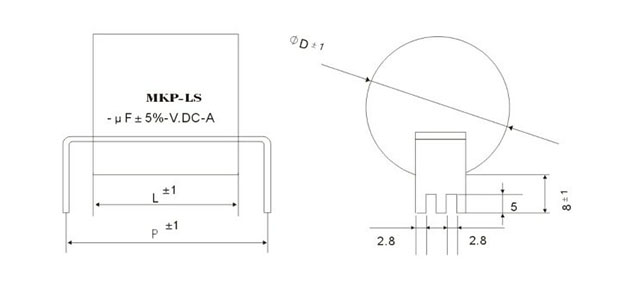

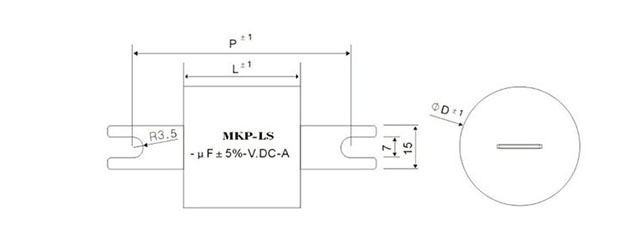

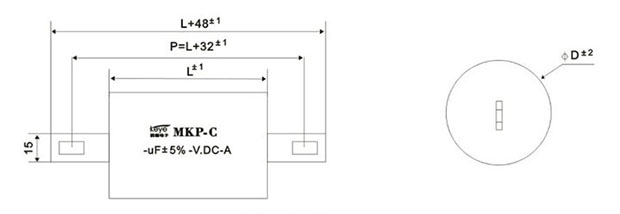

| 常用尺寸 | 单位：mm |
| 容量 (μF) |
D | L | ESR (mΩ) |
dv/dt (V/μs) |
Ipk (A) |
Irms 40°C 100kHz (A) |
重量 (g) |
| Un=800VDC | |||||||
| 10 | 34.5 | 37 | 3.2 | 80 | 800 | 25 | 75 |
| 10 | 41 | 40 | 3.1 | 80 | 800 | 35 | 99 |
| 10 | 43.6 | 37 | 3 | 80 | 800 | 35 | 102 |
| 20 | 49.3 | 37 | 2.8 | 80 | 1600 | 40 | 122 |
| 20 | 44.3 | 40 | 2.9 | 60 | 1200 | 40 | 110 |
| 20 | 37.8 | 50 | 3.1 | 50 | 1000 | 30 | 103 |
| 20 | 51.4 | 40 | 3 | 80 | 1600 | 40 | 138 |
| 20 | 58.9 | 40 | 2.9 | 80 | 1600 | 50 | 172 |
| 30 | 54 | 40 | 2.7 | 80 | 2400 | 45 | 149 |
| 30 | 48.8 | 50 | 2.6 | 60 | 1800 | 40 | 137 |
| 30 | 40.6 | 60 | 2.8 | 50 | 1500 | 35 | 131 |
| 40 | 62 | 40 | 2.5 | 80 | 3200 | 55 | 187 |
| 40 | 52.6 | 50 | 2.7 | 60 | 2400 | 45 | 191 |
| 40 | 46.6 | 60 | 3.2 | 60 | 2400 | 40 | 163 |
| 50 | 69.2 | 40 | 2.1 | 80 | 4000 | 60 | 225 |
| 50 | 58.7 | 50 | 2.4 | 60 | 3000 | 50 | 206 |
| 50 | 52 | 60 | 2.5 | 60 | 3000 | 45 | 196 |
| 50 | 68.8 | 60 | 2.4 | 60 | 3000 | 60 | 320 |
| 60 | 64.2 | 50 | 2.3 | 60 | 3600 | 55 | 240 |
| 60 | 56.7 | 60 | 2.4 | 60 | 3600 | 50 | 227 |
| 68 | 61 | 60 | 2.3 | 60 | 4080 | 55 | 258 |
| 70 | 70.2 | 50 | 2 | 60 | 4200 | 60 | 281 |
| 70 | 61.9 | 60 | 2.2 | 60 | 4200 | 55 | 265 |
| 80 | 73.9 | 50 | 2.1 | 60 | 4800 | 60 | 309 |
| 80 | 65.3 | 60 | 2.5 | 60 | 4800 | 60 | 291 |
| 100 | 82.5 | 50 | 1.8 | 60 | 600 | 75 | 377 |
| 100 | 72.9 | 60 | 2.2 | 50 | 5000 | 65 | 355 |
| Un=1000VDC | |||||||
| 10 | 41.5 | 40 | 3.4 | 60 | 600 | 35 | 102 |
| 20 | 49.7 | 50 | 3.1 | 60 | 1200 | 40 | 156 |
| 20 | 65.7 | 40 | 3 | 60 | 1200 | 60 | 206 |
| 30 | 60.6 | 50 | 3.1 | 60 | 1800 | 55 | 217 |
| 40 | 69.7 | 50 | 2.7 | 60 | 2400 | 60 | 278 |
| 40 | 61.7 | 60 | 2.9 | 50 | 2000 | 55 | 263 |
| 50 | 68.8 | 60 | 2.6 | 50 | 2500 | 60 | 320 |
| 60 | 75.2 | 60 | 2.2 | 50 | 3000 | 70 | 376 |
| 70 | 81.2 | 60 | 1.9 | 50 | 3500 | 70 | 434 |
| 80 | 86.7 | 60 | 1.6 | 50 | 4000 | 75 | 490 |
| Un=1400VDC | |||||||
| 5 | 34.9 | 60 | 2.2 | 100 | 500 | 30 | 105 |
| 10 | 48.6 | 60 | 2 | 100 | 1000 | 40 | 175 |
| 20 | 68 | 60 | 1.9 | 100 | 2000 | 60 | 313 |
| 25 | 76 | 60 | 1.8 | 100 | 2500 | 65 | 384 |
| 30 | 83.2 | 60 | 1.7 | 100 | 3000 | 75 | 454 |
| 30 | 45.8 | 50 | 2.2 | 50 | 1500 | 35 | 137 |
| 40 | 44.2 | 50 | 2 | 50 | 2000 | 35 | 130 |
