CBB81 高压电容器
CBB81高压电容器，采用金属化聚丙烯膜内串结构，环氧树脂包封。广泛应用于仪器仪表、电视机、节能灯和电子整流器及其它高频高压线路可作直流脉冲和交流降压用。
具有损耗小，自愈性能优异，可靠性高，容量范围广，温度性能好，高频特性好，高频损耗小，绝缘电阻高，能承受大电流冲击等特点。
| 技术参数 |
| 执行标准 | IEC381-17，GB/T14579 |
| 气候类型 | 40/105/21 |
| 额定电压 | 1000VDC、1400VDC、1600VDC、2000VDC |
| 容量范围 | 0.001μF~0.015μF |
| 容量偏差 | J（±5%），K（±10%） |
| 耐电压 | 2Un 2s |
| 损耗角正切 | Tanδ≤0.002（10kHz） |
| 绝缘电阻 | ≥10000MΩ（20°C 100V 1min） |

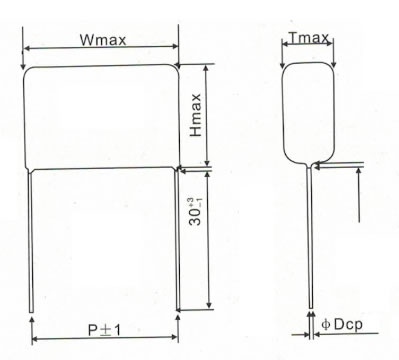

| 常用尺寸 | 单位：mm |
| 容量(μF) | W | H | T | P | D |
| 1000VDC | |||||
| 0.0027 | 14 | 10 | 7 | 10 | 0.6 |
| 0.0033 | 14 | 11 | 8 | 10 | 0.6 |
| 0.0039 | 14 | 11 | 8 | 10 | 0.6 |
| 0.0047 | 14 | 12 | 9 | 10 | 0.6 |
| 0.0056 | 14 | 13 | 10 | 10 | 0.6 |
| 0.0068 | 14 | 14 | 11 | 10 | 0.6 |
| 0.0039 | 19 | 11 | 6 | 15 | 0.6 |
| 0.0047 | 19 | 11 | 7 | 15 | 0.8 |
| 0.0056 | 19 | 12 | 7 | 15 | 0.8 |
| 0.0068 | 19 | 12 | 7 | 15 | 0.8 |
| 0.0082 | 19 | 13 | 8 | 15 | 0.8 |
| 0.01 | 19 | 14 | 8 | 15 | 0.8 |
| 0.012 | 19 | 15 | 9 | 15 | 0.8 |
| 0.015 | 19 | 16 | 9 | 15 | 0.8 |
| 1400VDC/1600VDC | |||||
| 0.0027 | 14 | 12 | 8 | 10 | 0.6 |
| 0.0033 | 14 | 13 | 9 | 10 | 0.6 |
| 0.0039 | 14 | 13 | 10 | 10 | 0.6 |
| 0.0047 | 14 | 10 | 5 | 15 | 0.6 |
| 0.0056 | 14 | 11 | 6 | 15 | 0.6 |
| 0.0068 | 14 | 11 | 7 | 15 | 0.6 |
| 0.0039 | 19 | 12 | 7 | 15 | 0.6 |
| 0.0047 | 19 | 13 | 8 | 15 | 0.8 |
| 0.0056 | 19 | 13 | 8 | 15 | 0.8 |
| 0.0068 | 19 | 14 | 8 | 15 | 0.8 |
| 0.0082 | 19 | 15 | 9 | 15 | 0.8 |
| 0.01 | 19 | 16 | 9 | 15 | 0.8 |
| 0.012 | 19 | 17 | 10 | 15 | 0.8 |
| 0.015 | 19 | 18 | 11 | 15 | 0.8 |
| 2000VDC | |||||
| 0.001 | 19 | 10 | 5 | 15 | 0.6 |
| 0.0012 | 19 | 11 | 5 | 15 | 0.6 |
| 0.0015 | 19 | 11 | 6 | 15 | 0.6 |
| 0.0018 | 19 | 12 | 6 | 15 | 0.6 |
| 0.0022 | 19 | 12 | 6 | 15 | 0.6 |
| 0.0027 | 19 | 13 | 7 | 15 | 0.6 |
| 0.0033 | 19 | 13 | 8 | 15 | 0.6 |
| 0.0039 | 19 | 13 | 8 | 15 | 0.6 |
| 0.0047 | 19 | 15 | 8 | 15 | 0.8 |
| 0.0056 | 19 | 16 | 8 | 15 | 0.8 |
| 0.0068 | 19 | 16 | 9 | 15 | 0.8 |
| 0.0075 | 19 | 17 | 9 | 15 | 0.8 |
| 0.0082 | 19 | 17 | 10 | 15 | 0.8 |
| 0.01 | 19 | 18 | 10 | 15 | 0.8 |
备注：引出方式和外壳尺寸可以协商生产。
